Tichome Mini Tutorial

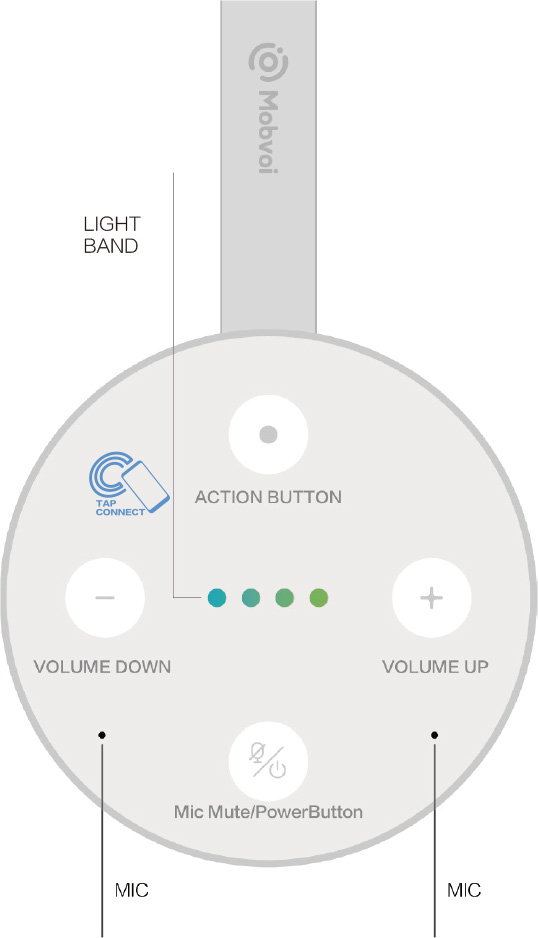

SECTION A:At A GLANCE-How the buttons work

Action Button Tap:

Pause/Play Music and Alarm

Action Button Press:

Push to talk

Mic Mute/Power Button Tap:

Mic mute/unmute

Mic Mute/Power Button Press(3 seconds):

Power on/ Power off

Volume Down/Up Button Tap:

Decrease/Increase Volume

Volume Down/Up Button Press:

Decrease/Increase Volume to

minimum/maximum

Action Button + Volume Down Press (5 seconds):

Enable Bluetooth Pairing Mode

Action Button + Mic Mute Button Press(10 seconds):

Factory Reset

Action Button +Volume Up + Volume Down Press (5 seconds):

Enable forced shutdown

Tichome Mini Tutorial FAQ, TichWatch smartwatch
SECTION B:TICHOME MINI SETUP
1.Tic Home Mini WIFI setup The device needs to connect to WIFI

The device needs to connect to WIFI first to finish the initial setup and update process. Once the device is configured to WIFI and finished the setup process, it can be used as bluetooth device(without internet) as well.

The WIFI Setup will be turned on when the device is 1st time booting up or when the device is in a casting session initiated by the Google Home App.

2.Tic Home Mini Bluetooth Pairing

The device needs to connect to WIFI first to finish the initial setup and update process. Once the device has configured to WIFI it can be used as bluetooth device(without internet) as well.

Press the voice button for 5 seconds to turn on bluetooth pairing, if the pairing didn’t start after 60 seconds, the bluetooth will switch to un-discoverable mode.Also, user can say hotword “Bluetooth Pair” around the device to trigger bluetooth paring.

Voice Feedback: bluetooth pairing initiated; For WIFI setup, press and hold volume up and volume down button for 5 seconds.

SECTION C:LED LIGHTS INSTRUCTION

TicHome has LED lights on the top that visually illustrates what it's doing. Here's more about the status indication of different LED lights, different status of TicHome mini and related button functions.

Note : the brightness of lights has three levels, dim-medium-strong. The lights can be set to different brightness level in manufacturing. For instance in volume adjust, all 3 levels of brightness are used. In all the other cases, the brightness of lights are default to medium.

System

Status LED light on top of TicHome mini will: (light color)
*Bootup(press control button for 3 seconds) 4 dots pulse and blink(multi-colored) Tichome Mini Tutorial FAQ, TichWatch smartwatch
*Ready to set up(Bootup success) 4 dots pulse twice (multi-colored) Tichome Mini Tutorial FAQ, TichWatch smartwatch
Power off(press control button for 3 seconds) 4 dots pulse for once (multi-colored) Tichome Mini Tutorial FAQ, TichWatch smartwatch
Factory Data Reset (FDR) (press and hold action button and mic 4 dots will light up in sequence within the 10 seconds (orange) Tichome Mini Tutorial FAQ, TichWatch smartwatch
Low Battery(<20%) 1st dot on the left pulse (orange) Tichome Mini Tutorial FAQ, TichWatch smartwatch
Charging

Device powered on:LED will flash, pulsing in sequence for 15s once plugged in. If any action is triggered by the user during the 15s, the battery charging LED will stop.(green).After the 15s, LED flashing will stop. There is no battery LED indication when the user presses any button or makes any query, unless the user plugs in the power again to check the battery status.

Device off-state:LED keeps flashing when not charged full. If full, LED light remains lit up until unplugged

Tichome Mini Tutorial FAQ, TichWatch smartwatch Tichome Mini Tutorial FAQ, TichWatch smartwatch Tichome Mini Tutorial FAQ, TichWatch smartwatch Tichome Mini Tutorial FAQ, TichWatch smartwatch
Fully charged 4 dots pulse only thrice before flashing no more(green) Tichome Mini Tutorial FAQ, TichWatch smartwatch
Alarm ringing N/A N/A
Timer ringing N/A N/A

Setup

Status LED light on top of TicHome mini will: (light color)
Wi-Fi connecting 4 dots pulse in sequence (right to left, blue) Tichome Mini Tutorial FAQ, TichWatch smartwatch
Connected, device is online 4 dots flash 3 times(blue) Tichome Mini Tutorial FAQ, TichWatch smartwatch
Enable /Waiting bluetooth pairing mode (press and hold volume down button and action button for 5seconds) 4 dots pulse slowly together (blue) Tichome Mini Tutorial FAQ, TichWatch smartwatch
Pairing failed (Wi-Fi or bluetooth) 4 static lights(red) Tichome Mini Tutorial FAQ, TichWatch smartwatch
Downloading Pulse from 2 dots on the side to 2 dots in the middle(white) Tichome Mini Tutorial FAQ, TichWatch smartwatch
Installing Left 1st dot and right 1st dot takes turn to pulse (white) Tichome Mini Tutorial FAQ, TichWatch smartwatch

Google Assistant

Status LED light on top of TicHome mini will: (light color)
TicHome mini heard "Hey, Google" or "Ok Google" and is waiting or response(hit voice button) 4 dots light up one by one (white) Tichome Mini Tutorial FAQ, TichWatch smartwatch
TicHome mini is listening 4 dots light up one by one (white) Tichome Mini Tutorial FAQ, TichWatch smartwatch
TicHome mini is thinking 4 dots pulse one by one (white) Tichome Mini Tutorial FAQ, TichWatch smartwatch
TicHome mini is responding 4 dots pulse(white) Tichome Mini Tutorial FAQ, TichWatch smartwatch
Microphone is off,TicHome mini isn't listening and can't respon Mic /Power Key 4 static lights (orange) Tichome Mini Tutorial FAQ, TichWatch smartwatch

Volume

status LED light on top of TicHome mini will: (light color)
Volume 1 / Volume 12 (Hit plus button or minus button to turn up/down volume; press plus button for 5 seconds for max volume and minus button for 5 seconds for min volume )

4 dots indicate 12 levels of volume intensity by light brightness (dim, medium & strong)

1st LED light : 1st-3rd level of volume

2nd LED light: 4th-6th level of volume

3nd LED light:7th-9th level of volume

4th LED light:10th-12th level of volume

Eg. 5th level volume: 1st dot stays on strong light and 2nd led light remains medium

Tichome Mini Tutorial FAQ, TichWatch smartwatch

Error

status LED light on top of TicHome mini will: (light color)
Update taking longer than expected 4 dots pulse (red) Tichome Mini Tutorial FAQ, TichWatch smartwatch
SECTION D:LIFESMART SPOT SETUP
Tichome Mini Tutorial FAQ, TichWatch smartwatch Download LifeSmart Spot User Guide
